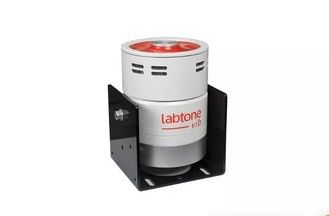

Small Vibration Table Testing Equipment for High Precision Vibration Meter Calibration

Low Acoustic Noise Vibration Test Machine Small Shaker for University



Introduction:

ET series standard vibration table with light weight, small volume, convenient to move, is widely used in the acceleration sensor calibration, the tiny parts of resistance to vibration test, fatigue test and mechanical impedance test. At the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.


 Features:

• Apply to high precision vibration meter calibration, mechanical impedance test, vibration analysis of the vibration source
• Apply to various of sensor, electronic, electric machines and other small lightweight vibration test .
• Apply to the basic test of vibration engineering education equipment, etc.


Technical Specifications:




Introduction to vibration controller

The vibration controller is of advanced distribution structure system, and closed-loop control is achieved by DSP processor. PC is independent of control loop to ensure real-time and high efficiency of the control system so as to timely and rapidly respond to any changes of the test system, and ensure control stability and high precision. 32-bit floating-point DSP processor with primary frequency up to 300MHz and 24-bit resolution ADC/DAC are used for hardware in coordination with high precision floating-point digital filtering and low noise design technology of hardware circuit. The dynamic random control range of the controller is more than 90dB and the signal to noise ratio is more than 100dB.
