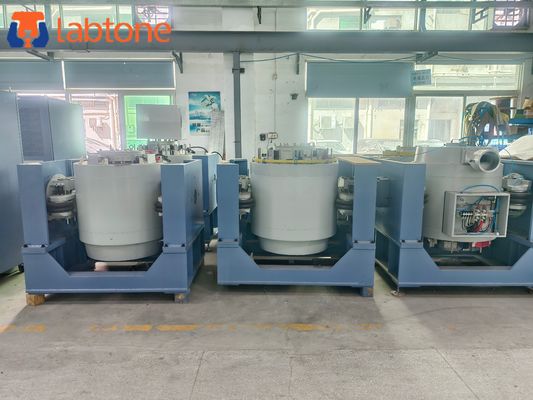

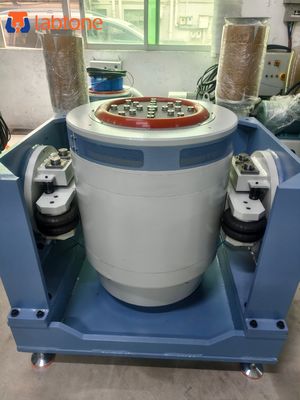

60KN Laboratory Vibration Test Equipment For New Energy Vehicle Parts ISO16750
Introduction to Vibration Test Equipment:
EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
EV series of electromagnetic vibration testing system is specially designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.
A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.
Vibration Test Equipment Specifications:
| Shaker Specifications A50T44 |
| Peak Sine (Pk) |
6000Kg.f peak (60KN) |
| Random (RMS) |
6000Kg.f r.ms (60KN) @ISO5344 |
| Shock (Pk) |
12000Kg.f peak (120KN) @6ms |
| Usable Frequency |
1～2700Hz |
| Maximum Displacement (p-p) |
76mm (3inch) intermittence,64mm (2.5 inch) continuous |
| Max. velocity |
2.0m/s |
| Max. acceleration |
100G (980 m/s2) |
| Vertical Load Support |
500 kg (2000kg is an optional) |
|
Body Suspension Natural
Frequency (Thrust Axis)
|
Less than 2.5 Hz |
| Armature Diameter |
Ф440 mm |
| Armature Weight |
60kg |
|
Fundamental Resonance
Frequency (Bare table)
|
2,100 Hz (nom.) +/- 5% |
|
Load Attachment
Points (Standard)
|
16 stainless steel M10 Inserts |
| Stray Flux Density |
＜10gauss |
| Shaker dimensions |
1680mmL×1180mmD×1350mmH |
| Weight of Shaker |
About 4700Kg |
Other models: EV203-EV260
| Model |
EV203 |
EV206 |
EV210 |
EV220 |
EV232 |
EV240 |
EV250 |
EV260 |
| Frequency Range(Hz) |
1－2500 |
1-3000 |
1-3000 |
1-3000 |
1-3000 |
2-2500 |
1-2500 |
1-2700 |
| Max.Force(kg.f) |
300(2.94) |
600(5.88) |
1000(9.8) |
2200(21.56) |
3200(31.36) |
4000(39.2) |
5000(49) |
6000(58.8) |
Max.Displacement
(mmp-p) |
40 |
50.8 |
50.8 |
50.8 |
50.8 |
50.8 |
50.8 |
50.8 |
| Max.Acceleration(G) |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
| Max.Velocity (cm/s) |
180 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
| Max.Load(kg) |
120 |
200 |
200 |
300 |
500 |
500 |
800 |
1000 |
| Vibrator Model |
VG300/40 |
VG600/50 |
VG1000/50 |
VG2200/50 |
VG3200/50 |
VG4000/50 |
VG5000/50 |
VG6000/50 |
| Armature Weight(kg) |
3 |
6 |
10 |
22 |
32 |
40 |
50 |
50 |
| Armature Dia.(mm) |
￠150 |
￠200 |
￠240 |
￠320 |
￠400 |
￠440 |
￠445 |
￠445 |
Vibration Test Equipment Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries of Vibration Test Equipment:
Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.
Features of Vibration Test Equipment:
- Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
- U-type spring ,rollers and linear bearing for strong resistance of deflecting load
- Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
- Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
- Able to complete sine ,random , impact environmental tests
- This system requires voltage fluctuation, ≤±10%
- This system requires Grounding resistance, ≤4Ω
- High reliability, especially suitable for long-time operation
Our Services:
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM, Design service,Buyer label |
